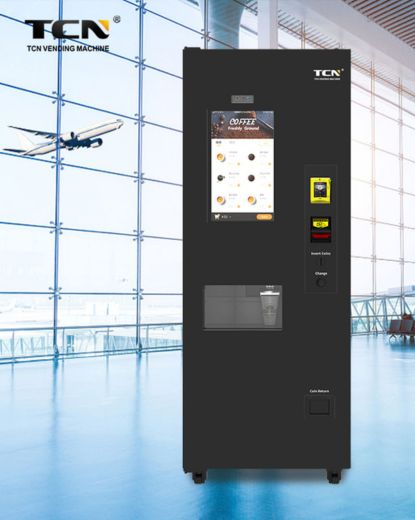

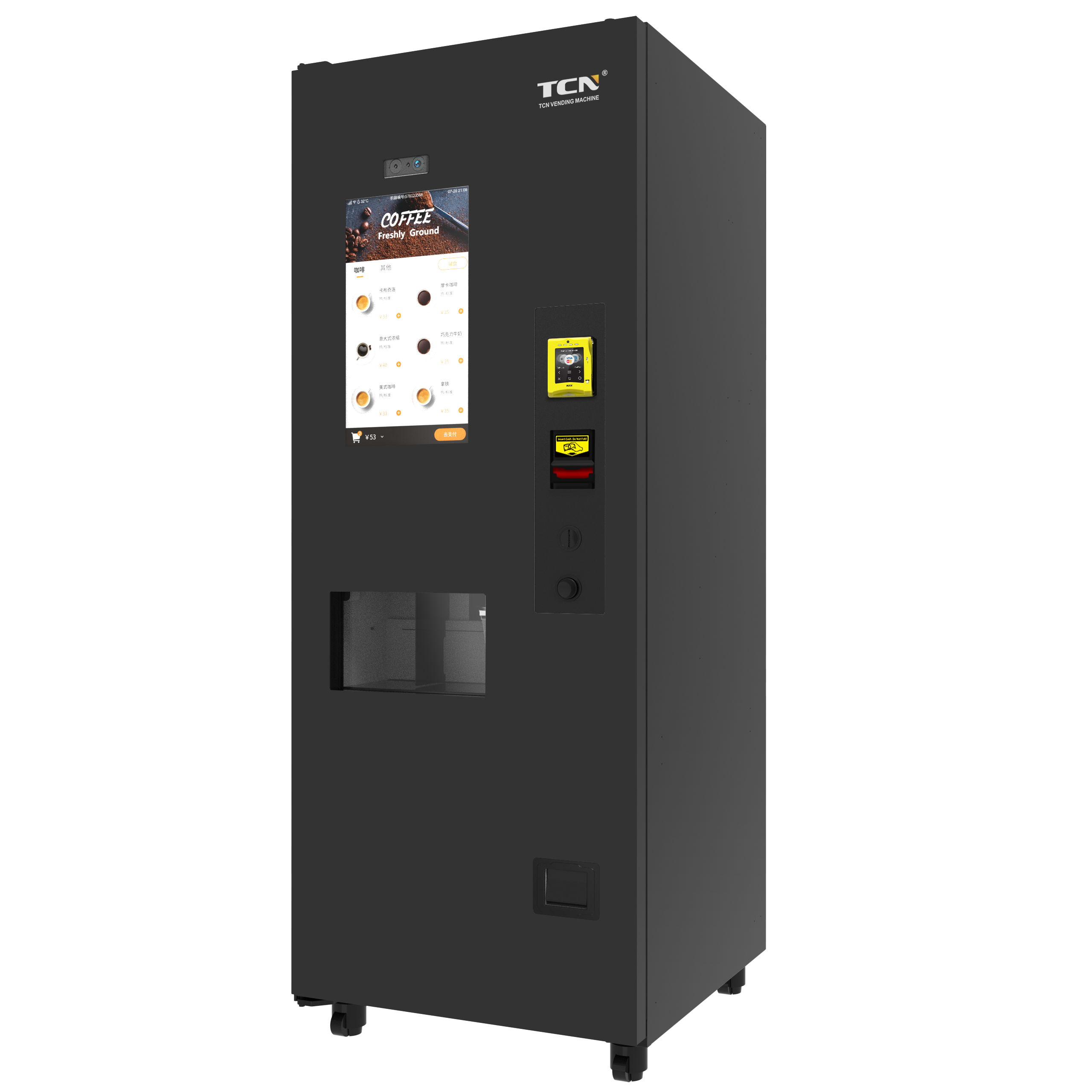

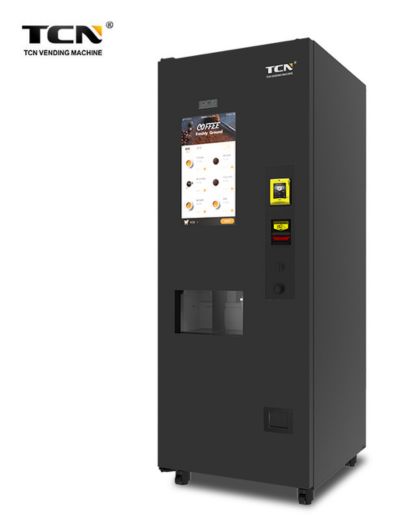

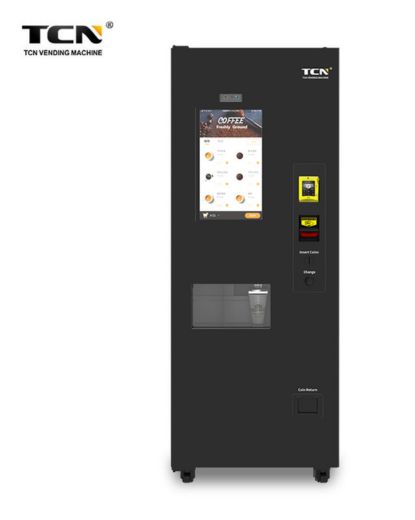

TCN-NCF-7N(V22)- COFFEE Vending Machine

This high-end coffee machine combines cutting-edge technology with robust design, featuring a 1.5kg bean storage, large-capacity brewer (7-16g), and 6×4L instant canisters for continuous operation. Its all-steel emergency lock and electronic door lock ensure security, while integrated grinder and waste bucket maintain hygiene. Offering versatile payment options (coins/cash/cards) and dual water bottles for uninterrupted service, this market-ready machine delivers premium coffee with commercial-grade reliability.

Contact Us

HOME ꄲ COFFEE VENDING MACHINE ꄲ TCN-NCF-7N(V22)

넳 넲

TCN-NCF-7N-V22 freshly ground coffee vending machine for a fresh cup of Americano, Latte, or Cappuccino

5KG Coffee Bean Storage – Ensures long operation without frequent refills.

Large Capacity Brewer (7-16g) – Supports customizable coffee strength.

Instant Canisters (4L×6) – Streamlines bulk ingredient storage.

Integrated Coffee Grinder – Freshly grinds beans for peak flavor.

COFFEE

VENDING MACHINE

Technical Specifications

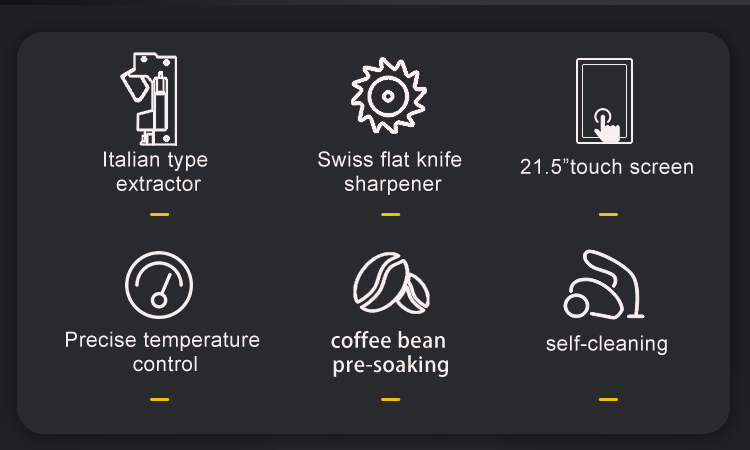

Core features of TCN coffee vendor including Italian extraction, Swiss grinder, and self-cleaning

Specifications

Message *

More Details

↵

Model	TCN-NCF-7N(V22)
Dimension	H:1940mm W:735mm D:790mm
Weight	220KG
Peak power	3000W
Standby power:	Less than 25W
Making time	About 45s
Screen	22"HD touch screen
Cup capacity	140 cups 140caps(optional)
Coffee bean hopper	1.5KG
Instnat canisters	(4L*6)
Brewer system	7-16g powder
Voltage	AC100V-240V 50/60HZ
Temperature	92℃
Back-end system	Computer & Wechat intelligent iCloud system

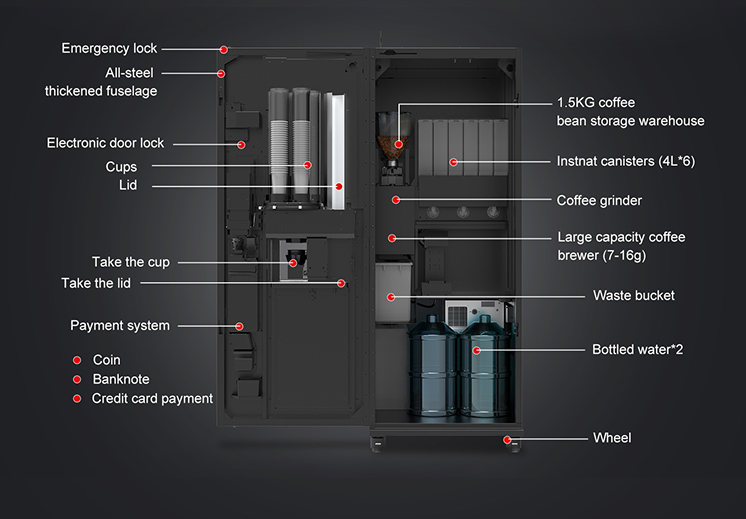

Internal structure of TCN-NCF-7N-V22 coffee vending machineshowing 1.5kg bean hopper, 6 ingredient canisters, and grinder

Brand new technologies build high-end quality

More thoughtful designs to guaranteen machine's competitiveness when it goes into the market.

Drink menu of TCN-NCF-7N coffee vending machine showing Americano, Latte, Cappuccino, and Mocha options

Freshly Ground Coffee Machine

High precision weighting sensor control each cups coffee bean's using assuring the stable tasting.

Material boxes for Ingredients like: milk, Coco Powder, Sugar,Tea Powder, Lemon Powder, etc.

TCN-NCF-7N-V22 Coffee vending machine with swiss ditting , cofee beans ground more even and extracting improved

Swiss Ditting 64mm Original Burr

Stable functionality, coffee beans ground more even and extracting improved, a long life span of more than 100,000 times

Large Capacity & Precision Dispensing

This coffee vending machine features a transparent coffee bean hopper with a 1.5 kg capacity, complete with a secure lid to prevent spillage during operation. It is complemented by six integrated 4-liter canisters for various liquid ingredients. A precision weighing system ensures every component is dispensed accurately and consistently, guaranteeing a perfect brew every time. With this robust capacity, the machine can reliably create over 20 different beverage options, minimizing the need for frequent refills.

Flexible Payment Options & Smoother Process

• Process: Interactive Touch Screen → Choose Payment Method → Receive Coffee & Change.

• Payment Methods: Comprehensive support for Cash, Credit Card (VISA), and QR Code payments (LINE Pay, WeChat Pay, VNPAY, etc.).

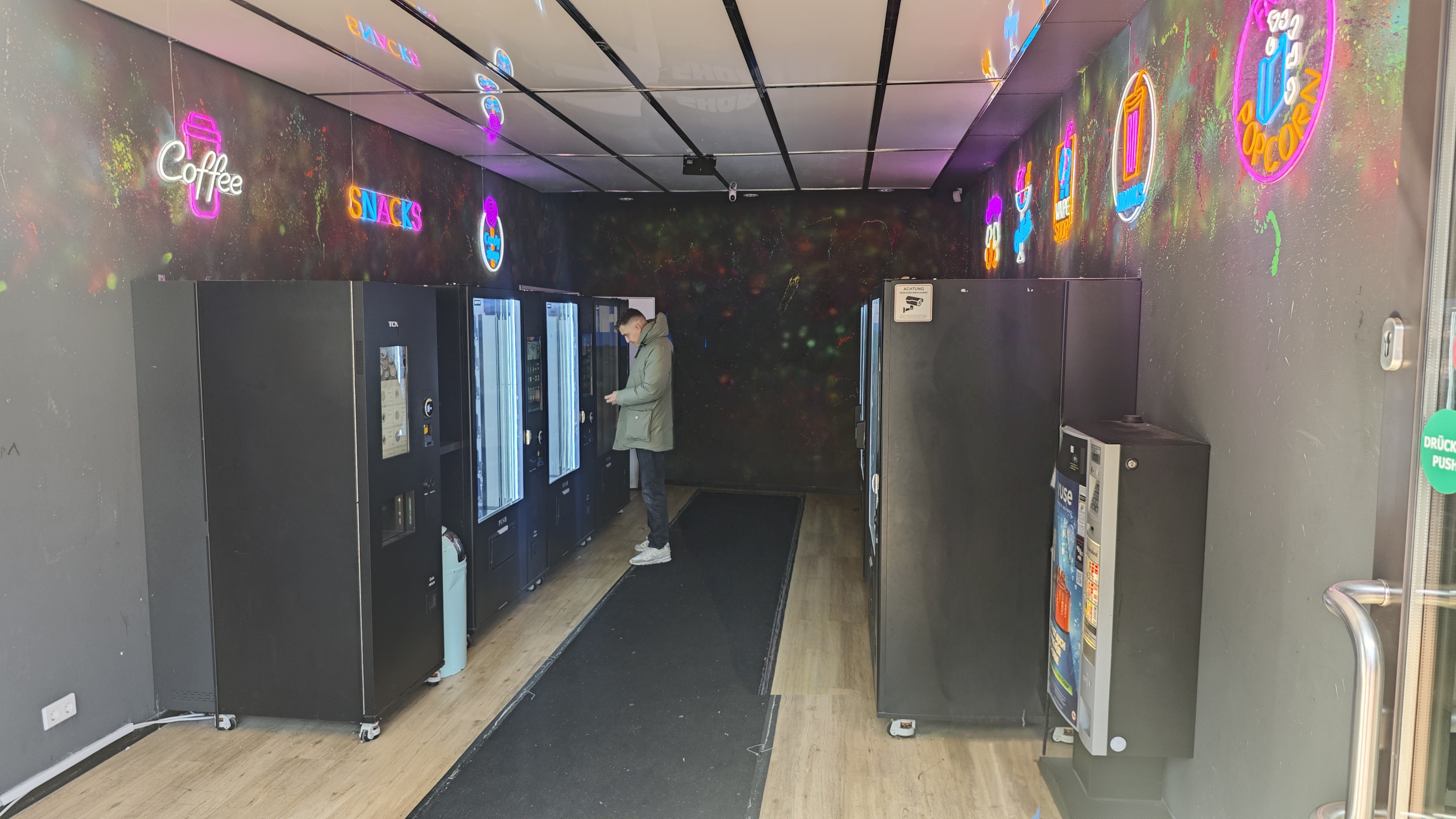

Deploy in High-Traffic Locations, Drive IncrementalRevenue

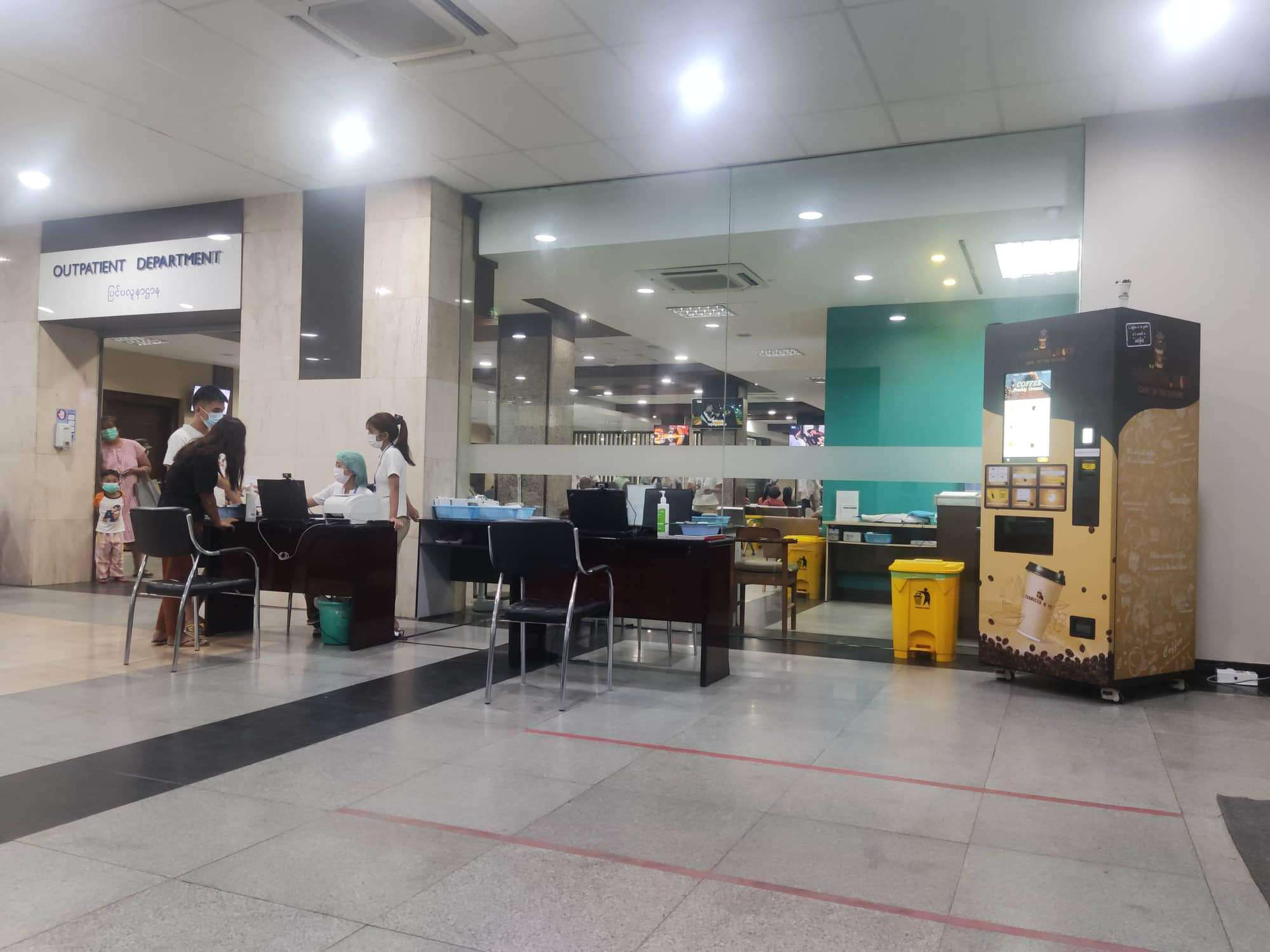

Deploy our coffee vending solutions in high-traffic venues to unlock new, incremental revenue streams. Ideal locations span across critical sectors including Transportation Hubs (airports, train/subway stations), Retail & Entertainment (shopping malls, supermarkets, parks, zoos), Institutional Facilities (hospitals, schools, offices, hotels, banks), and Popular Destinations (scenic areas, pharmacies)
